5-Achsen Closed Loop Schrittmotor Kit mit Nema 23 Motor, Schrittmotor Treiber und Netzteil

5-Achsen Closed Loop Schrittmotor Kit mit Nema 23 Motor, Schrittmotor Treiber und Netzteil

Features:
Closed-Loop System: Nema 23 closed-loop stepper motors with 1000-line encoders.
Motor 57HB250-112B Torque: Each motor provides 3Nm of holding torque for industrial applications.

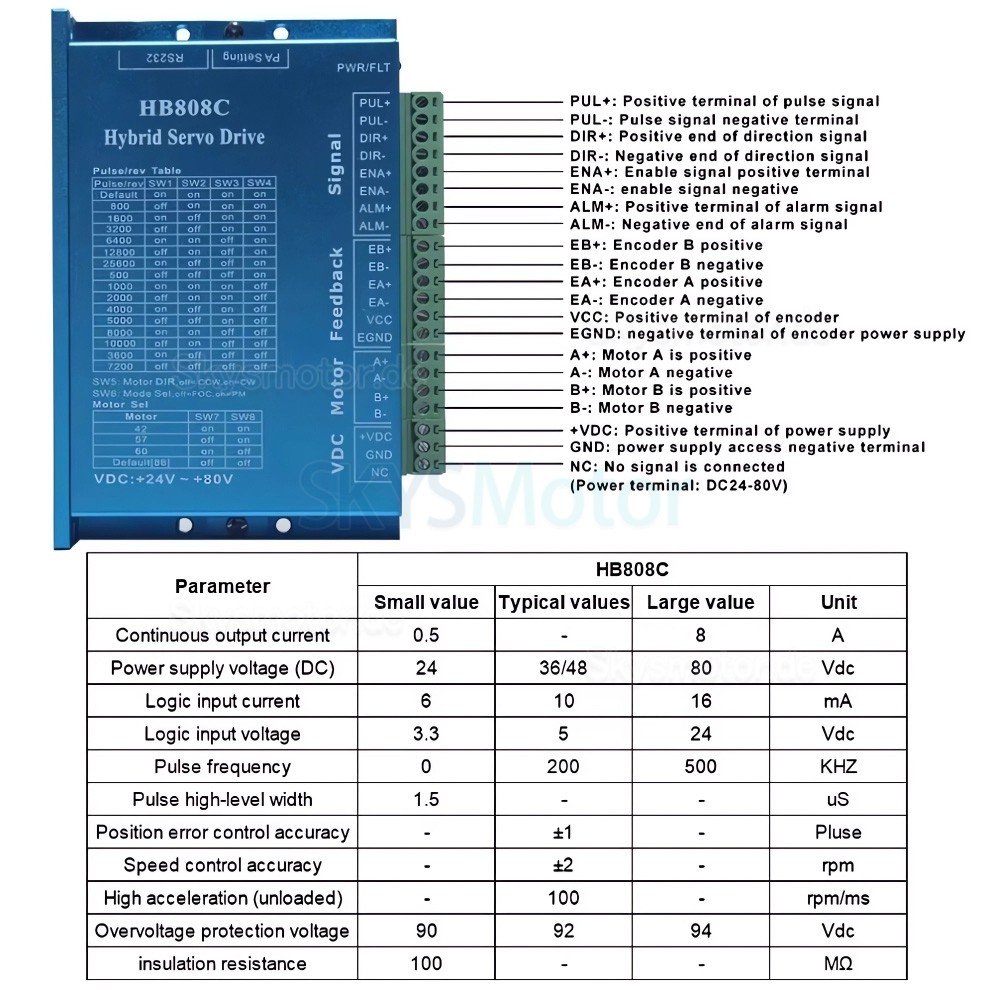

DSP Drivers: HB8080C drivers with a peak current of 13A and a response frequency of 200KHz for responsive control. Supports 24-80VDC input and PUL/DIR or CW/CCW signals. Offers 200 to 25,600 microsteps.

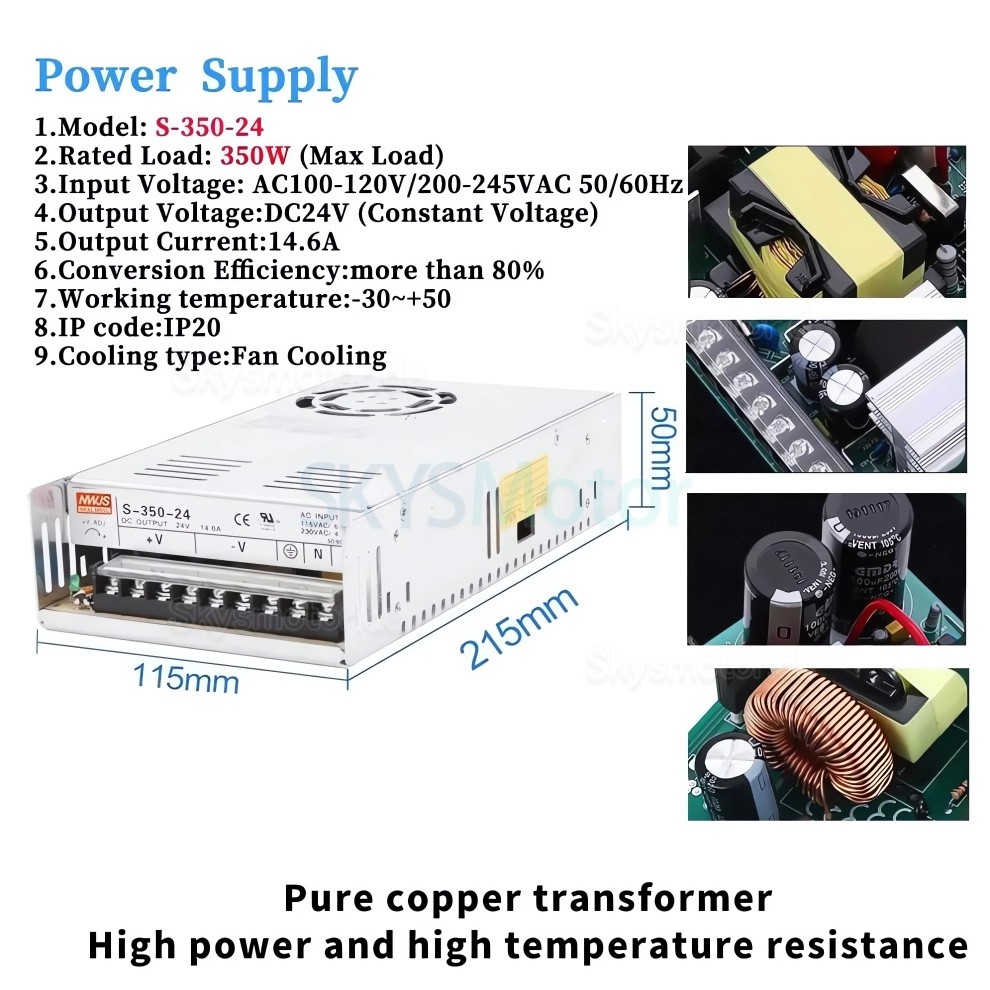

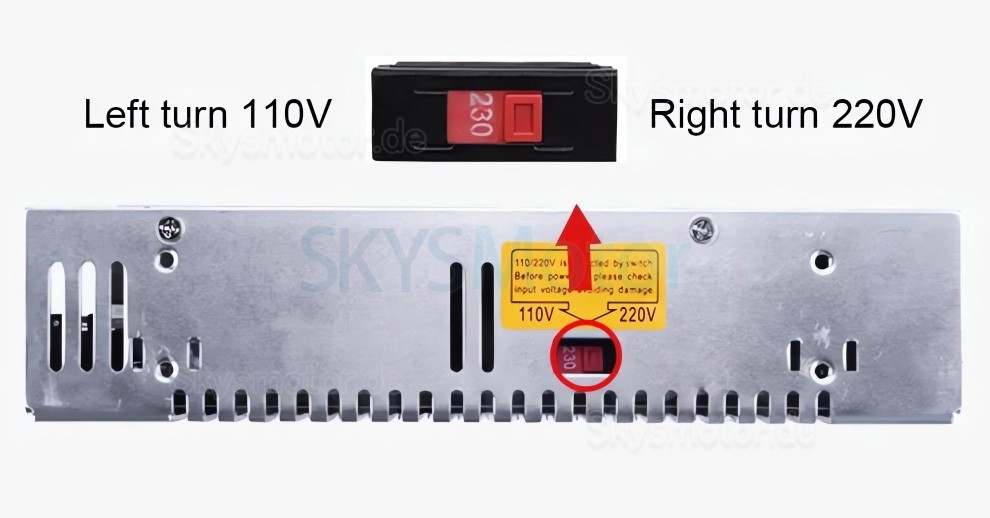

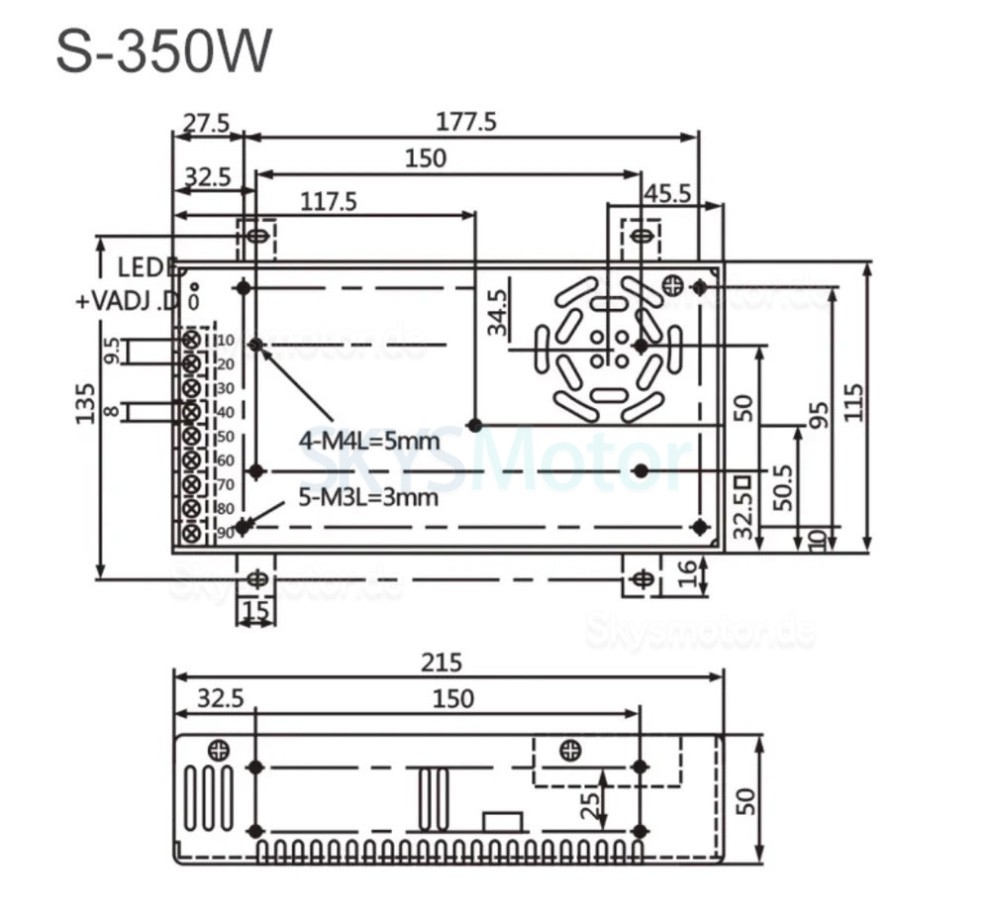

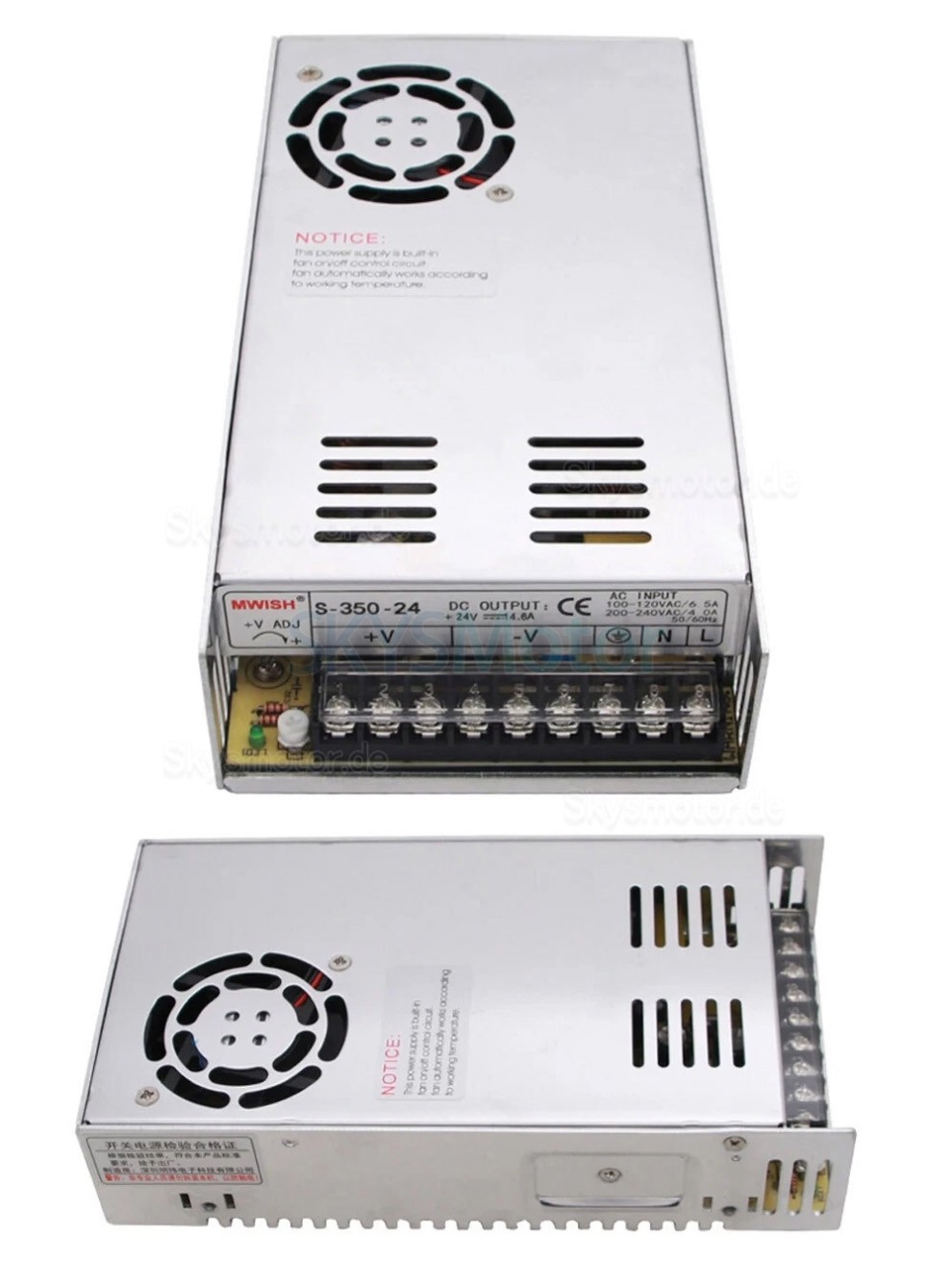

Power Supply: 350W 24V DC power supply with over-current, over-voltage, and load protection. Dual AC input (110V/220V switchable).

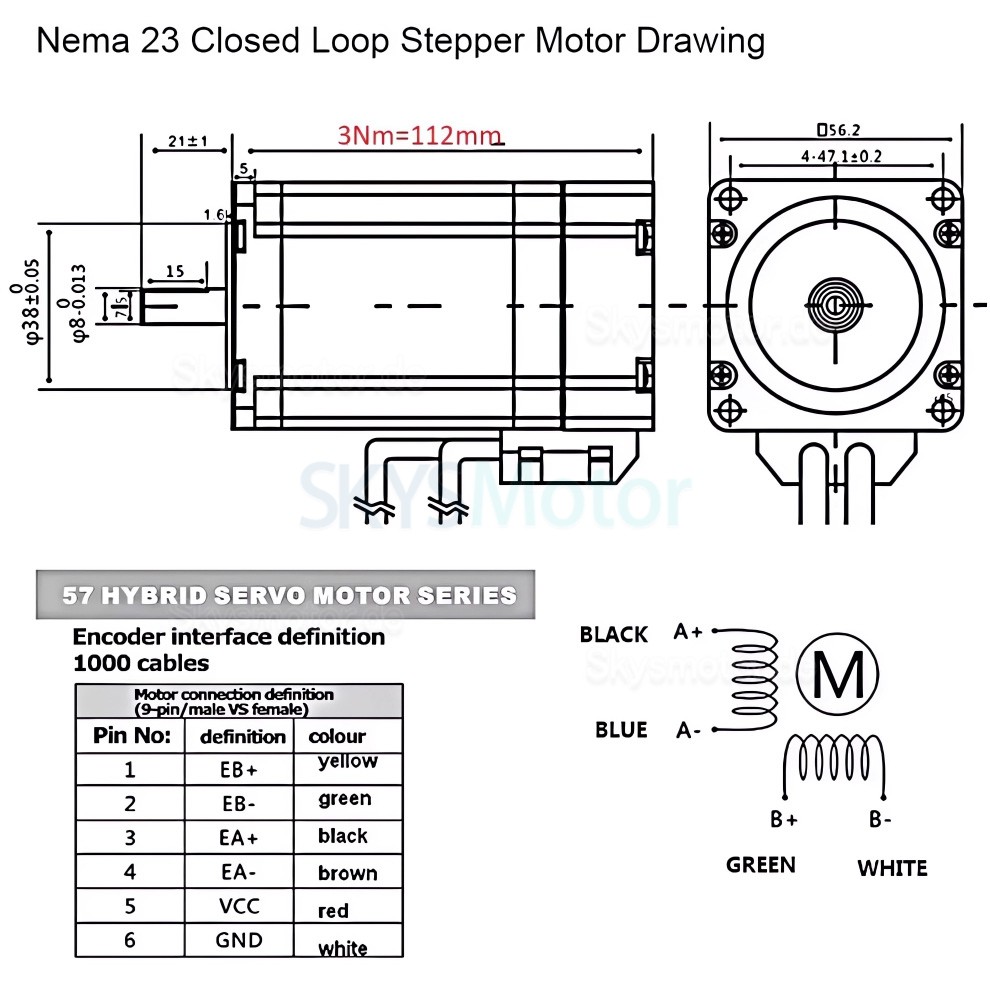

Motor Dimensions: Nema 23 closed-loop motor size: 3Nm (57×57×112mm).

Applications:
CNC Machinery: Milling, engraving, cutting, and lathe operations.
Automated Manufacturing: Used in robotic arms, conveyor systems, and assembly lines.
3D Printing & Laser Cutting: Provides stable positioning for precise layer transitions.
DIY CNC Projects: For hobbyists upgrading motion control capabilities.
Industrial Automation: Suitable for packaging, textile machinery, and rotary indexing systems.

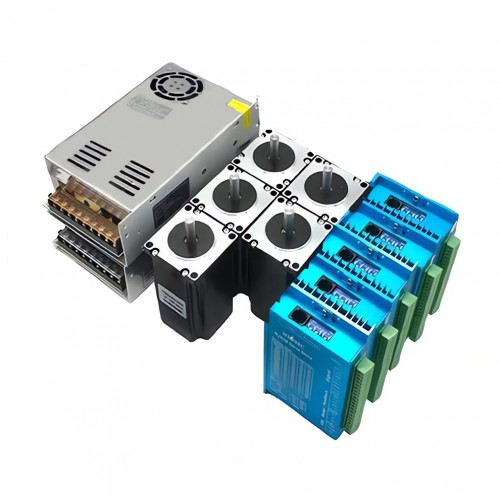

Kit Includes:
5 * HB8080C Driver

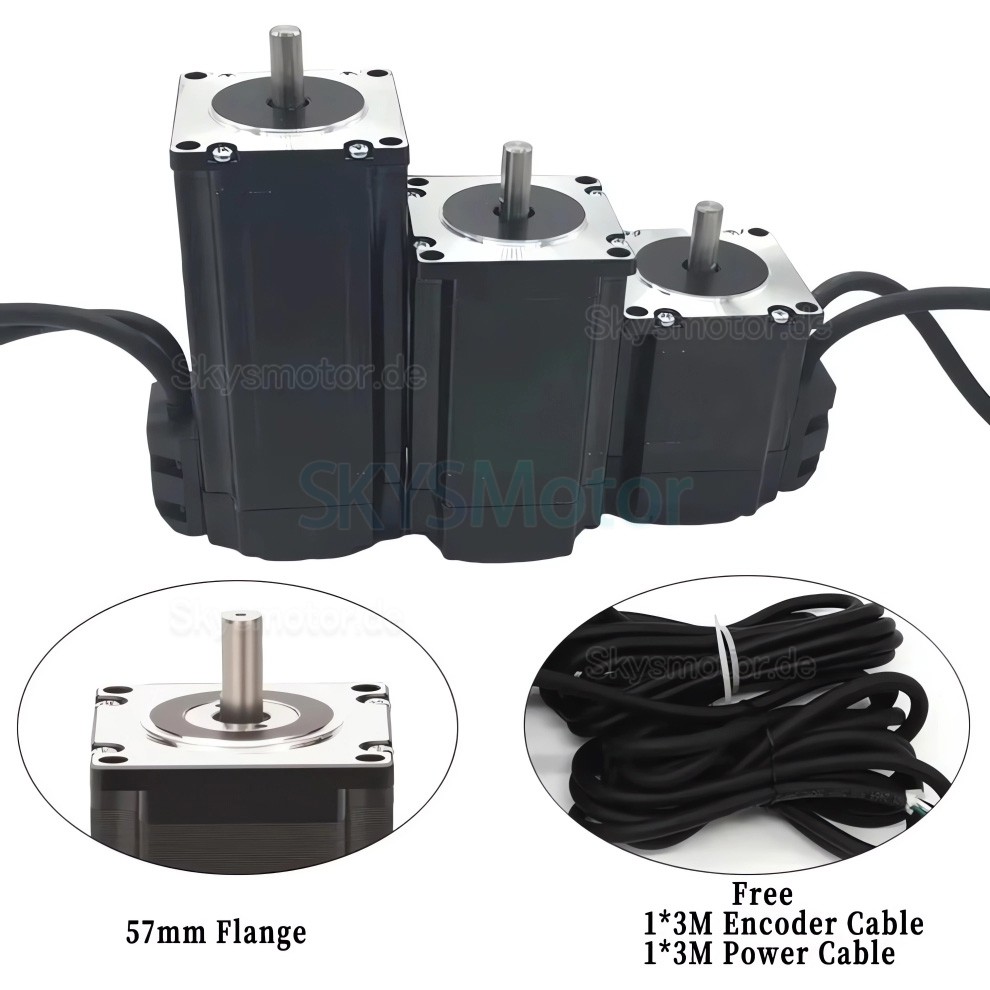

5 * Closed-Loop Nema 23 Stepper Motors (3Nm)
5 * 3M Encoder Cables
5 * 3M Power Cables
2 * 350W 24V Power Supplies
